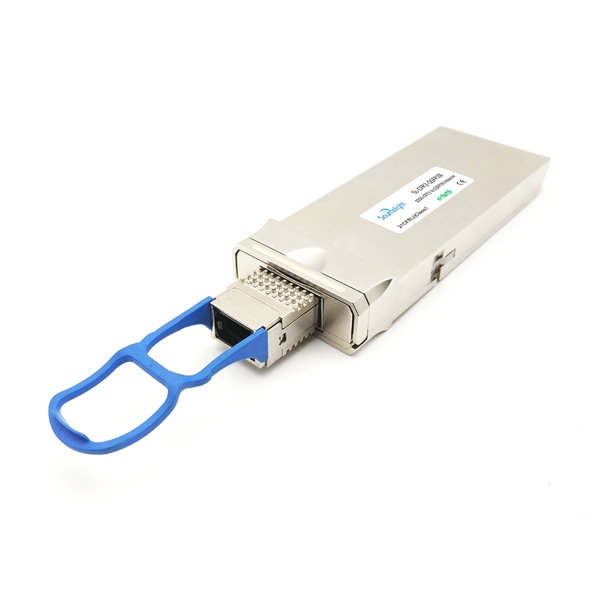

100G CFP2 TO QSFP28 CONVERTER

100G CFP2 TO QSFP28 CONVERTER
型号 : SL-CFP2-QSFP28
Name Value

Product Description CFP2 To QSFP28 Converter
Data Rate 100Gbit/s
Reach --
Tx --
Rx --
Connector 100G QSFP28
The 100G CFP2 to QSFP28 Adapter module is a four-Channel, high performance, hot pluggable, and interconnect solution supporting 100G Ethernet and Telecom. The adapter converts a CFP MSA interface to 1-port of 100GE QSFP28.It is compliant with the CFP MSA. Sourcelight 100G CFP2 to QSFP28 Adapter integrates four data lanes in each direction with operating at up to 28Gbps per lane. The adapter is without the FEC (Forward Error Correction) and supports 100G QSFP28 LR4/ER4. When the 100GE network equipment’s CFP2 port has FEC function, it can support 100G QSFP28 SR4/PSM4/CWDM4/CLR4.

Compliant to CFP2 Hardware Specification Version 1.0
Compliant to CFP2 MSA Management Interface Specification Version 2.4
4 channels full-duplex transceiver
Internal CDR circuits on both receiver and transmitter channels
Transmission data rate up to 28Gbps per channel
OTU4 compatible
Without FEC (Forward Error Correction)
1 port QSFP28 TX&RX, supports 100G QSFP28 LR4/ER4.
Supports 100G QSFP28 SR4/PSM4/CWDM4/CLR4 (when the 100GE network equipment’s CFP2 port has FEC function)
MDIO digital diagnostic interface and control capabilities
Power class 3 (Adapter<2W max)
Hot pluggable electrical interface
Operating case temperature:0°C~ +70°C
Single 3.3V power supply
RoHS 6 compliant (lead free)
