| Name | Value |
| Package | OSFP224 2xDR4 |
| Data Rate | 1.6Tbit/s |
| Reach | 500m |
| Tx | CW (SiPh Based) |
| Rx | PIN |
| Connector | Dual MTP/MPO-12 APC |
| Fiber Type | SMF |

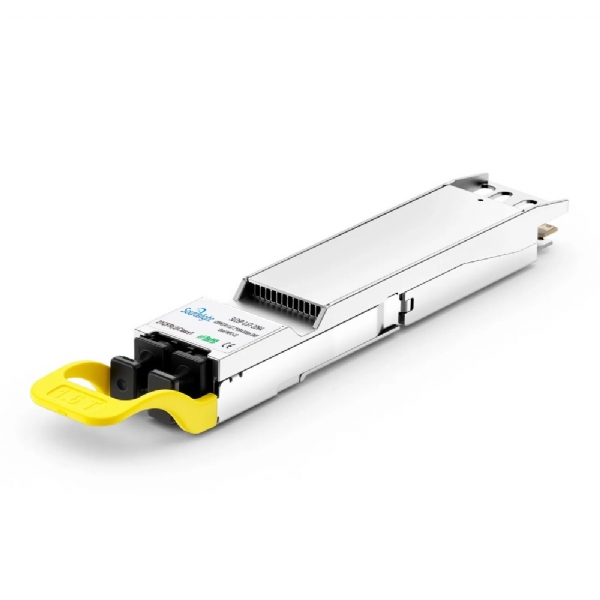

Sourcelight 1600GBASE OSFP224 2*DR4 transceiver is an InfiniBand 1.6T 2x 800Gb/s Twin-port OSFP, 2xDR4 single mode. It is 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 800Gb/s each.
The parallel single mode, short reach 8-channel (2xDR4/DR8), uses 200G-PAM4 modulation and has a maximum fiber reach of 500-meters using 8 single mode fibers. It is qualified for use in InfiniBand XDR end-to-end systems.
| Package (Form Factor) | OSFP224 |
| Data Rate (typical) | 1600Gbps (8x200Gbps) |
| Centre Wavelength | 1310nm |
| Distance | 500m on SMF |
| Diagnostics | Digital Monitor |
| Transmitter | CW (SiPh Based) |
| Receiver | PIN |
| TX Output Power (dBm) | -3.3~+4dBm |
| Minimum Receiver Power (dBm) | <-6.3dBm |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Dual MTP/MPO-12 APC |
