| Name | Value |
| Product Description | OSFP 2xDR4 |
| Data Rate | 800Gbit/s |
| Reach | 500m |
| Tx | EML |
| Rx | PIN |
| Connector | Dual MTP/MPO-12 SM |

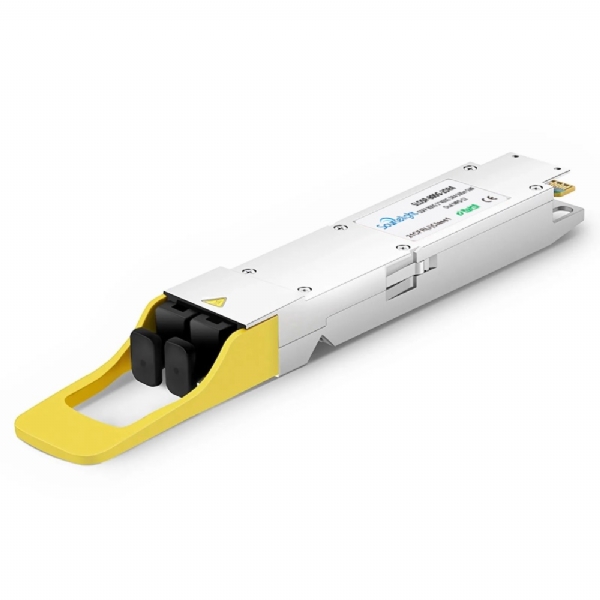

Sourcelight 800GBASE OSFP 2*400G-DR4 is an 8-channel electrical, 8-channel optical, pluggable, single mode fiber. The Transceiver module designed for use in 800G Ethernet links on up to 500m over single mode fiber with Dual MPO-12 connectors. It’s compliant with the CMIS, OSFP MSA, IEEE 802.3cn and IEEE 802.3ck.
This transceiver is suitable for 800G Ethernet, Data Center, Breakout 2x400G DR4, Data Center and Cloud Networks application.
| Package (Form Factor) | OSFP |
| Data Rate (typical) | 800Gbps (8x106.25Gbps) |
| Centre Wavelength | 1310nm |
| Distance | 500m on SMF |
| Diagnostics | Digital Monitor |
| Transmitter | EML |
| Receiver | PIN |
| TX Output Power (dBm) | -2.9~+4dBm |
| Minimum Receiver Power (dBm) | <-5.9dBm |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Dual MTP/MPO-12 APC |
