| Name | Value |
| Package | OSFP SR8 |
| Data Rate | 800Gbit/s |
| Reach | 100m |
| Tx | VCSEL |
| Rx | PD |
| Connector | MTP/MPO-16 APC |
| Fiber Type | MMF |

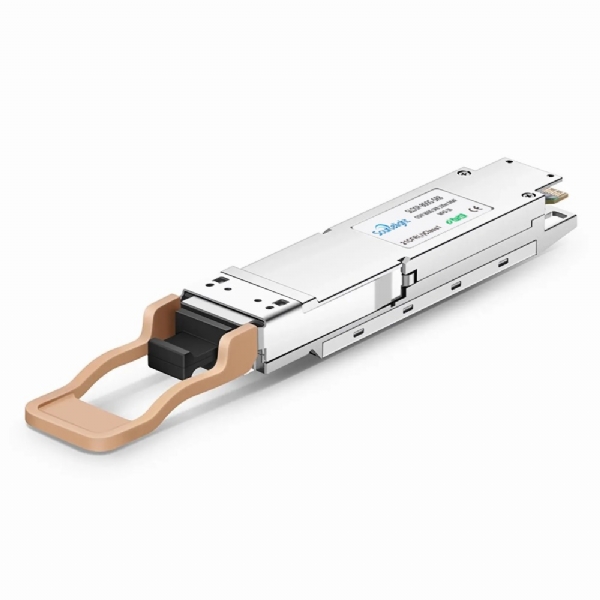

Sourcelight 800GBASE OSFP SR8 is an 8-channel electrical Pluggable, Parallel, Fiber-Optic QSFP Density for 800 Gigabit Ethernet Applications. The Transceiver module designed for 800GBASE Ethernet and 800Gb/s 2xNDR InfiniBand systems with transmission distance up to 100m over OM4 multimode fiber (MMF), using an 850nm wavelength with an MTP/MPO-16 connector.
This transceiver is compliant with IEEE P802.3ck and OSFP MSA standards.
| Package (Form Factor) | OSFP |
| Data Rate (typical) | 800Gbps (8x106.25Gbps) |
| Centre Wavelength | 850nm |
| Distance | 100m on OM4 MMF |
| Diagnostics | Digital Monitor |
| Transmitter | VCSEL |
| Receiver | PD |
| TX Output Power (dBm) | -4.6~+4dBm |
| Minimum Receiver Power (dBm) | -6.4dBm |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | MTP/MPO-16 APC |
