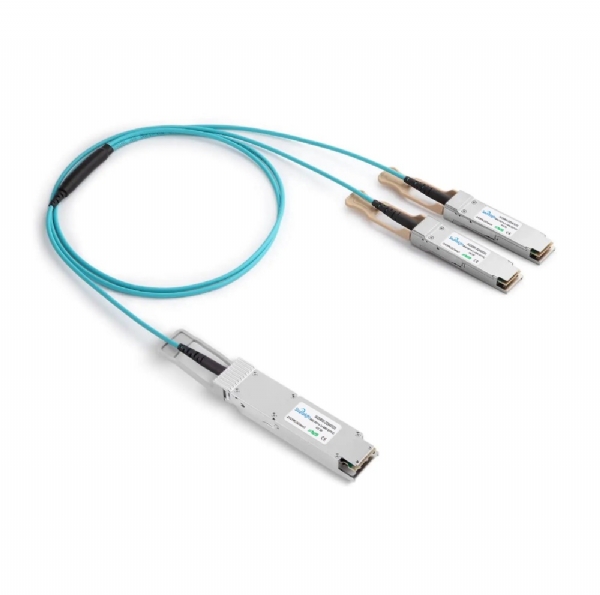

Sourcelight SLOS2QS-800AOCXX is an 8-channel, pluggable, Fiber Optic 800G OSFP to 2 x 400G QSFP112 Active Optical Cable.
The AOC is a high performances module for short range multi-lane data communication and interconnect applications. It integrates eight data lanes in each direction with 8x53.125GBd. Each lane can operate at 106.25Gbps up to 50m using OM4 fiber.
| Package (Form Factor) | 800G OSFP to 2x400G QSFP112 AOC |
| Data Rate (typical) | 800Gbps (106.25Gbps/CH) |
| Cable Length | Up to 50m on MMF OM4 |
| Transmitter | VCSEL |
| Receiver | PIN |
| Power Consumption | < 14W at OSFP end / < 10W at QSFP112 end |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | OSFP / QSFP112 |
